After plotting the stress and its corresponding strain on the graph we get a curve and this curve is called stress strain curve or stress strain diagram.

Stress strain curve of ceramic vs metal. The parameters which are used to describe the stress strain curve of a metal are the tensile strength yield strength or yield point percent elongation and reduction of area. If tensile force is applied to a steel bar it will have some elongation. With a very short elastic region but highly capable of supporting huge stresses. The general shape of the engineering stress strain curve fig.

The last two indicate ductility. A highly elastic polymer may stretch over 10 times the original length before breaking while a metal might elastically stretch 10 of the original length elastically and may stretch. Yielding starts at c and ends at d. 1 requires further explanation.

After the point d the material due to strain hardening again starts taking load and the curve rises as seen in the. Lean how a wire behaves under increasing load using the stress strain graph. Tensile tests of brittle ceramics are usually not performed. Stress strain curves for two brittle materials.

Elastomers are the ones that strains more w a lower stress. 1 metals al alloy stress strain curve. It is difficult to shape these materials into the proper test structure difficult to grab the brittle material without breaking it and it is difficult to align the test samples to avoid bending stresses. In this booster you will learn about design stress strain curve of concrete and steel as per is 456 2000.

2 stress strain curve for ceramics. We used these curve for limit state method. In this the stress is plotted on the y axis and its corresponding strain on the x axis. In engineering and materials science a stress strain curve for a material gives the relationship between stress and strain it is obtained by gradually applying load to a test coupon and measuring the deformation from which the stress and strain can be determined see tensile testing these curves reveal many of the properties of a material such as the young s modulus the yield strength.

And finally analogous to ceramics are the stiff fibers and rigid plastics. When steel is curved it is important to keep the stress strain curve ratio for mild steel in mind. The first two are strength parameters. Stress strain curve is the plot of stress and strain of a material or metal on the graph.

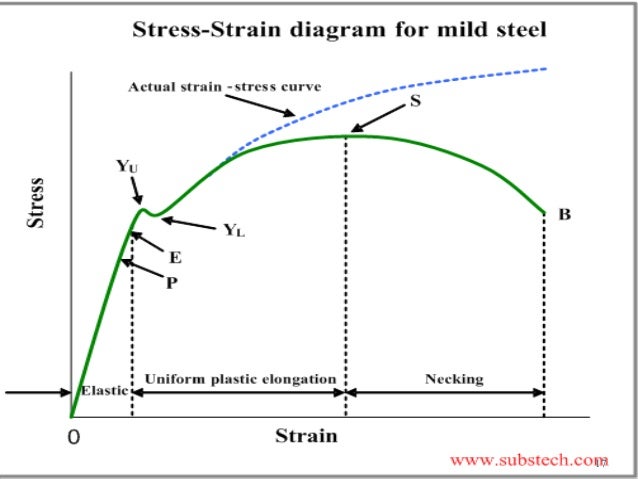

Below is a stress strain graph that reviews the properties of steel in detail. The stress strain curve in this part of the graph is almost horizontal which implies that there is an appreciable increase in strain for a negligible increase in stress.
