Stress Strain Curve For Ceramics And Thermosetting Plastics

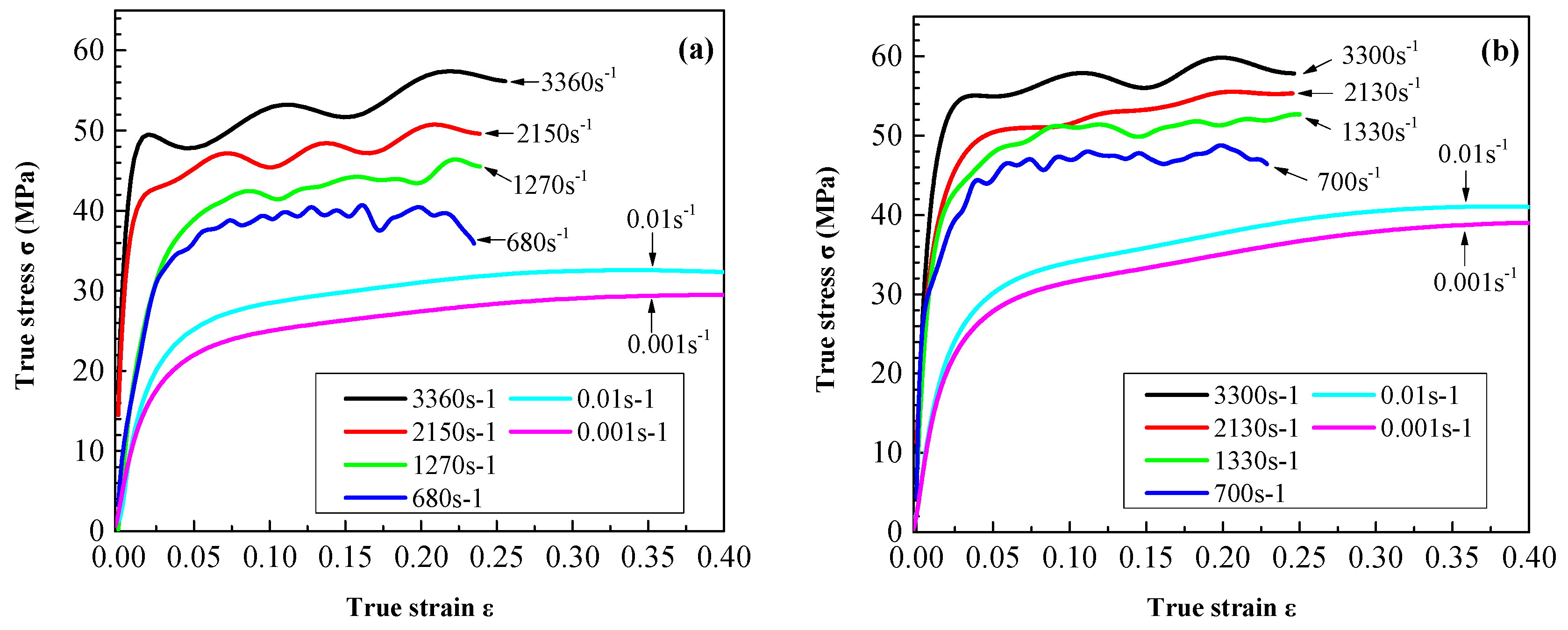

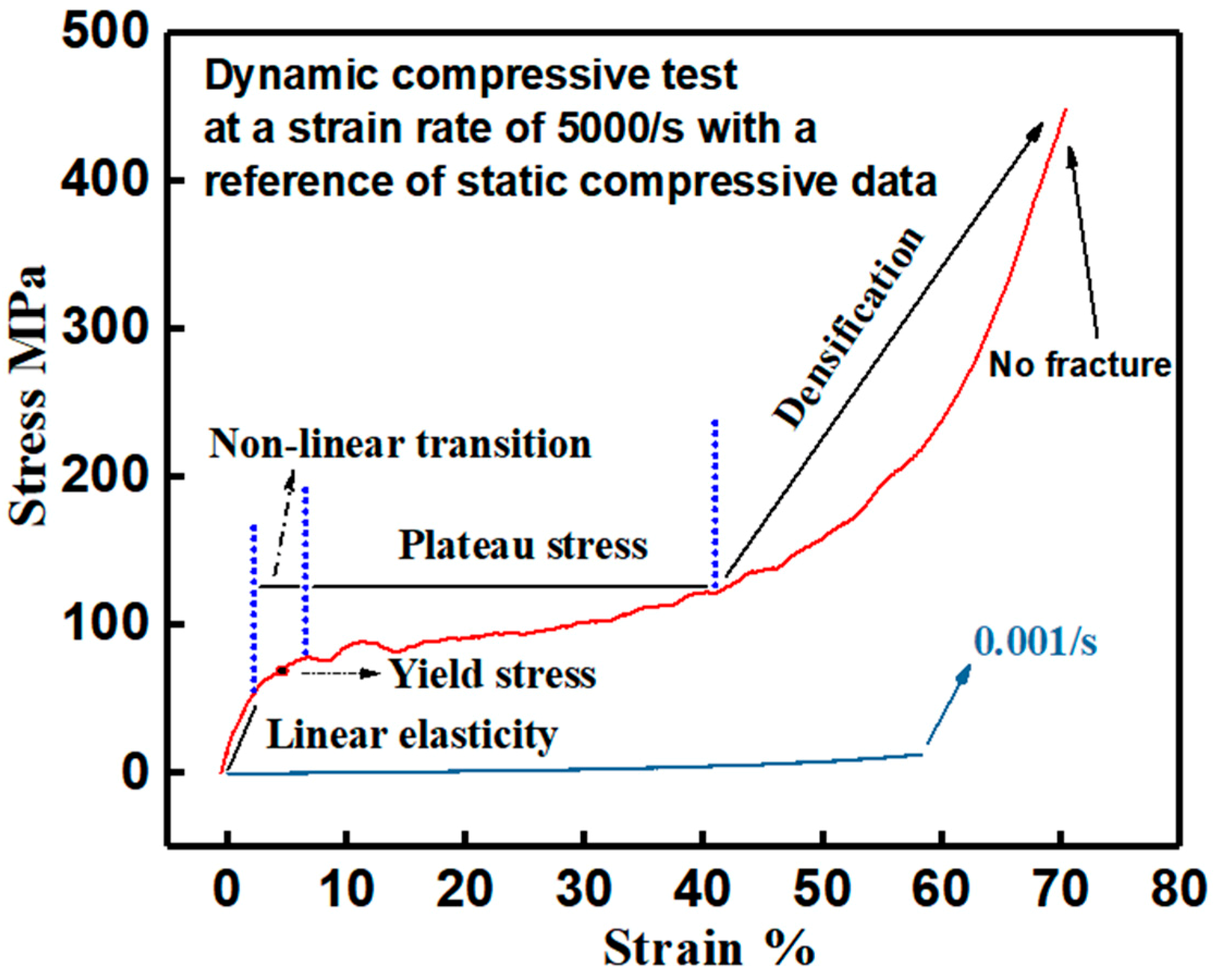

Figure 5 shows the true stress true strain curves to εmax 1 0 at three different compression strain rates i e.

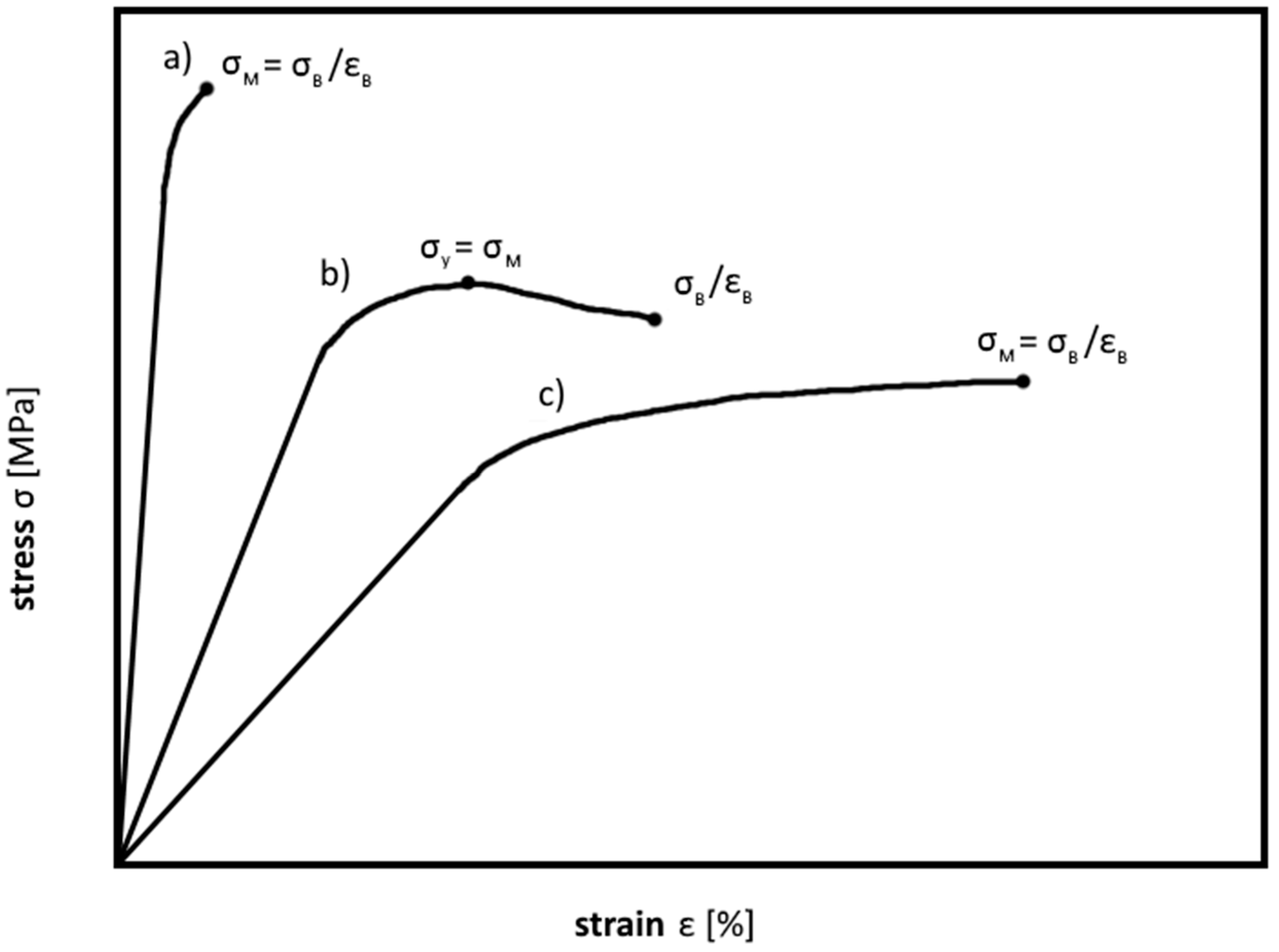

Stress strain curve for ceramics and thermosetting plastics. And finally analogous to ceramics are the stiff fibers and rigid plastics. For brittle ceramics a three point bending apparatus shown in the figure below is used determine the stress strain behavior and the measurement results are used to calculate an equivalent modulus of elasticity. At point d the tensile stress and elongation at yield are determined. Such as ceramics and thermosetting plastics σ stress and ε strain.

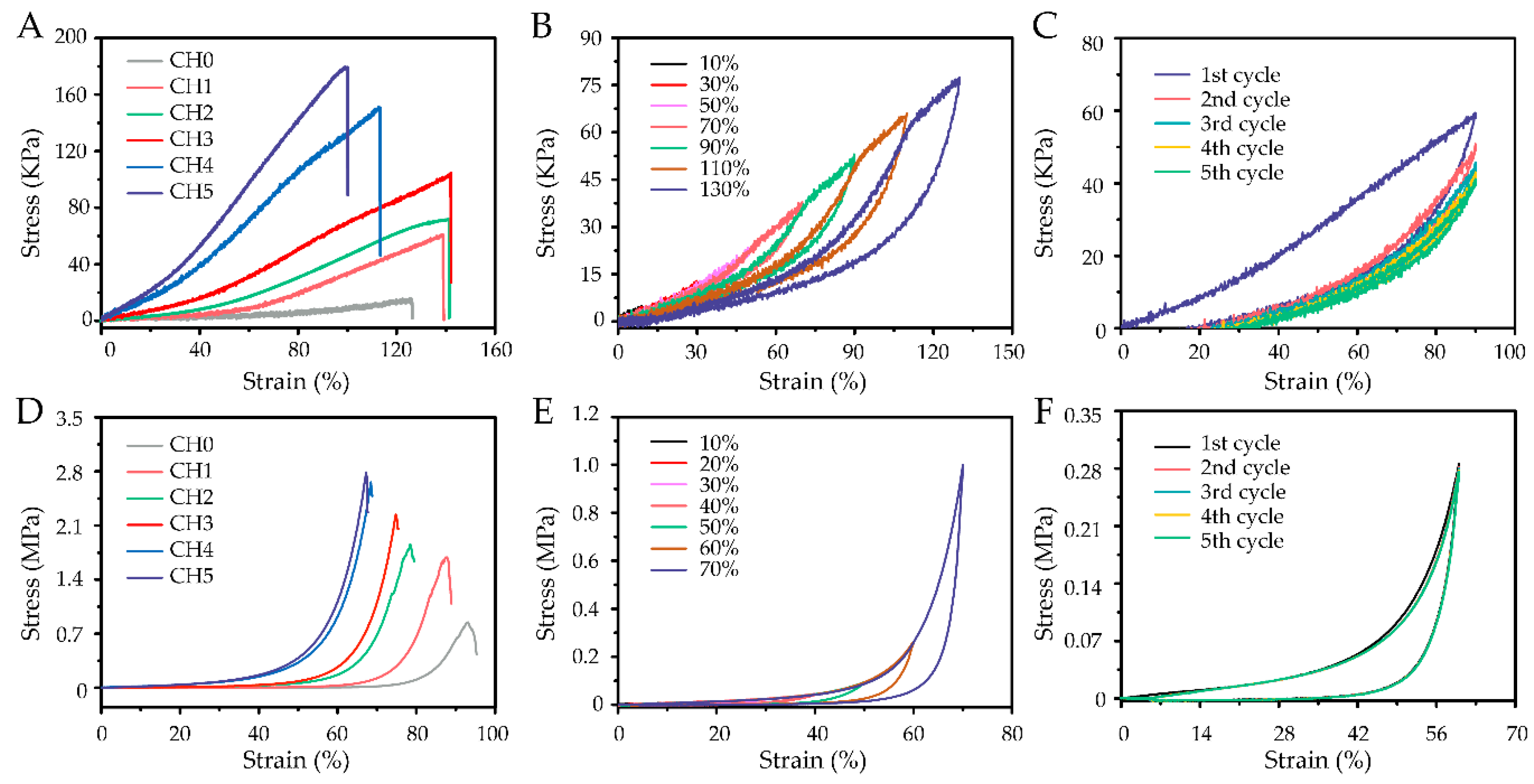

Where σ is the value of stress e is the elastic modulus of the material s ty is the tensile yield strength of the material and n is the strain hardening exponent of the material which. 1 metals al alloy stress strain curve. As in the previous stress strain curves there is an initial linear elastic portion followed by a deviation from linearity indicating permanent or plastic deformation. The unloading curves from different strain rate tests are nearly identical suggesting.

ε 1 0 01 s 0 05 s ε 2 and 0 1 s ε 3. A hypothetical engineering stress strain curve shown in the figure has three straight lines pq qr rs with coordinates p 0 0 q 0 2 100 r 0 6 140 and s 0 8 130. In engineering and materials science a stress strain curve for a material gives the relationship between stress and strain it is obtained by gradually applying load to a test coupon and measuring the deformation from which the stress and strain can be determined see tensile testing these curves reveal many of the properties of a material such as the young s modulus the yield strength. Q is the yield point r is the uts point and s the fracture point.

The curve on the right shows a stress strain curve for a material that strain hardens. A true stress true strain curves for uniaxial compression tests. With a very short elastic region but highly capable of supporting huge stresses. The stress strain curve is approximated using the ramberg osgood equation which calculates the total strain elastic and plastic as a function of stress.

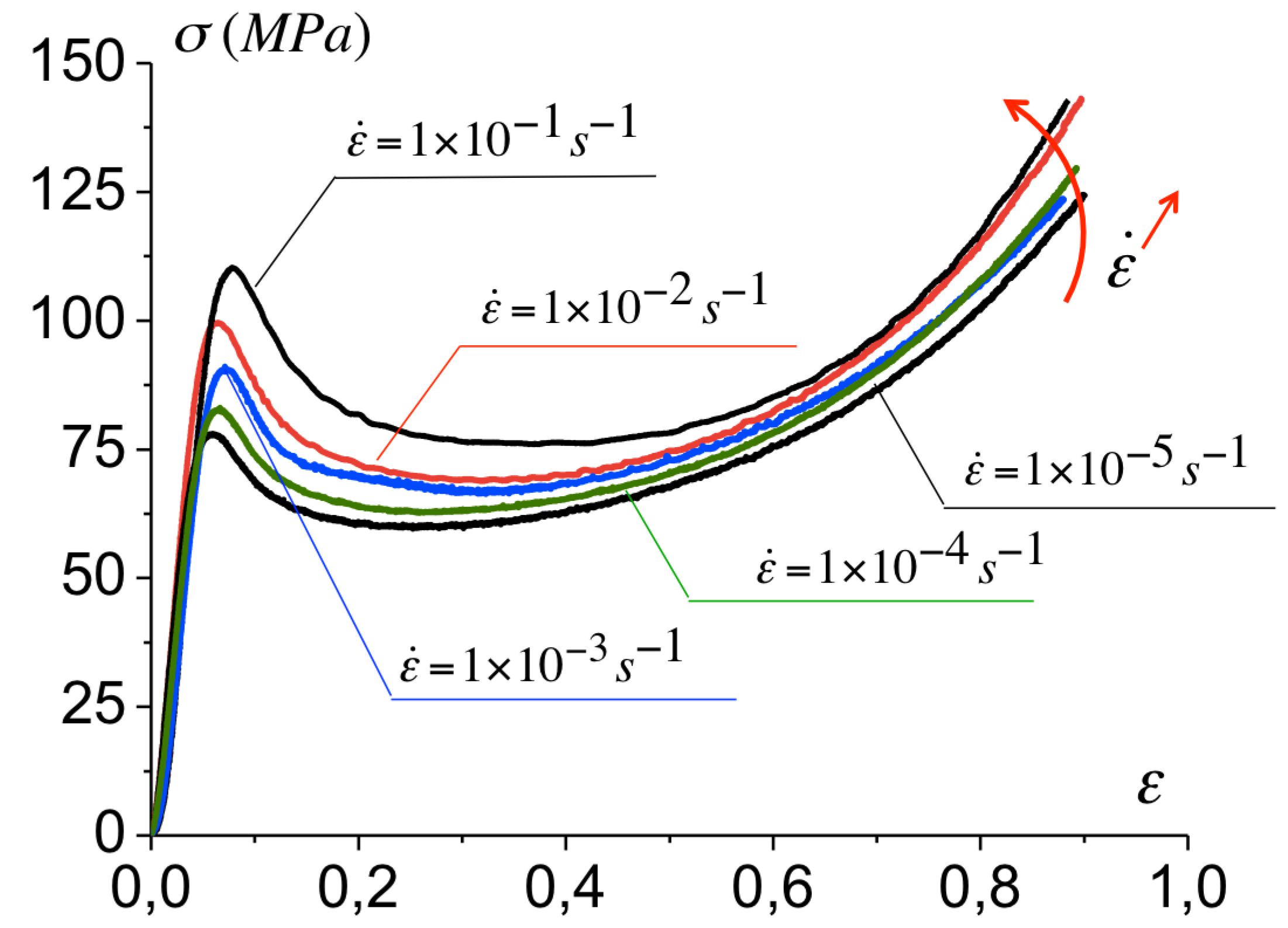

For the loading portions of the curves the higher the strain rate the larger the stress. Which of the following types of stress strain relationship best describes the behaviour of brittle materials such as ceramics and thermosetting plastics σ stress and ε strain. B decompositions of the stress strain behavior into an equilibrium part and a time dependent part. 14 shows the true stress true strain curve from the simulation when a 30 s delay was allotted prior to unloading.
