Storage Tank Insulation Thickness Calculation

Insulation thickness 77 7 mm.

Storage tank insulation thickness calculation. Has to be considered for the heat losses on which insulation thickness will be based on. Recommended insulation thickness of heating systems like hot water low medium or high pressure steam systems. Spray foam insulation tanks are actually more structurally sound as an added benefit of foam is it increases the integrity. Calculate insulation thickness minimum value required for a pipe carrying steam at 180 0 c.

One of those things to remember is tank internal inspection interval calculation. A π r 2 where r is the radius which is equal to 1 2 the diameter or d 2. Edited by kkala 26 november 2012 05 01 am. Hence insulation thickness ri rp 0 2302 0 1524 0 0777.

Td 2 6 d h 1 g sd td td tt 2 6 d h 1 st td miniumum shell thickness in inches d normal tank diameter in feet h depth of tank in feet g design specific gravity of liquid sd allowable stress for design condition e joint efficiency. Piping recommended insulation thickness. Thermal conductivity of the insulation material for the temperature range of the pipe can be taken as 0 04 w m k. Api is designed to provide the petroleum industry with welded steel tanks for use in the storage of petroleum products and other liquid products commonly handled and stored by the various branches of the petroleum industry.

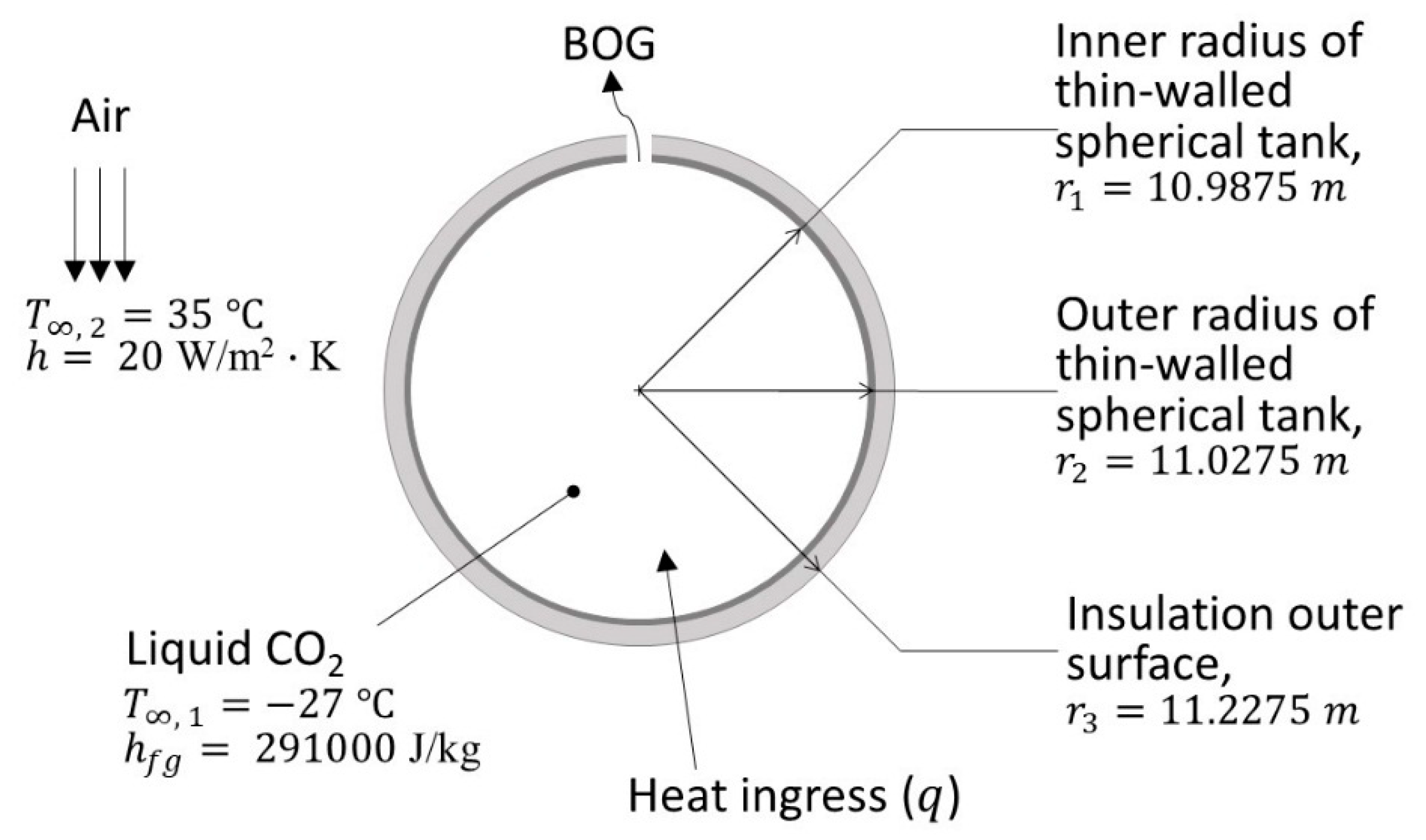

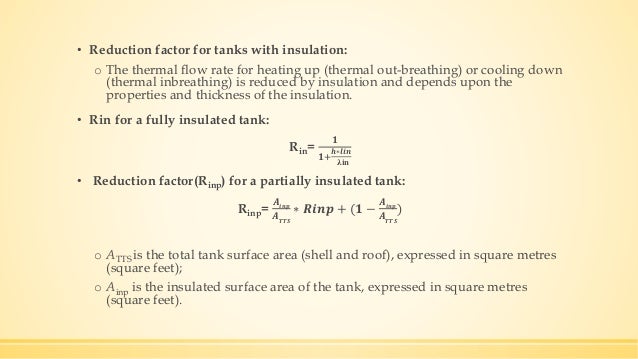

Extra margin must be taken on insulation thickness as sometimes conducting heat transfer through insulation may become higher than convective heat transfer due to air on outside wall of insulation. Spray foam insulation is ideal for many different storage tanks specifically because it has an r value of 6 5 inch of thickness which can keep energy costs related to heating or cooling the tank significantly lower. Thermal conductivity of perlite insulation temperature and k values. I saw that forum and decided to write this post in order to clarify the subject more.

Api 650 design calculations annular bottom plate thickness shell design. The pipe size is 8 and the maximum allowable temperature of outer wall of insulation is 50 0 c. The heat loss from steam per meter of pipe length has to be. Written by jerry ratzlaff on 18 february 2016.

I was wandering the eng tips forum the other day and i found a question about calculating minimum remaining thickness for a tank bottom. Calculate overall heat transfer coefficients for walls or heat exchangers. Api std 650 tank calculator. Total volume of a cylinder shaped tank is the area a of the circular end times the length l.

Storage temperature could be set to lower values than 60 oc.
